About:

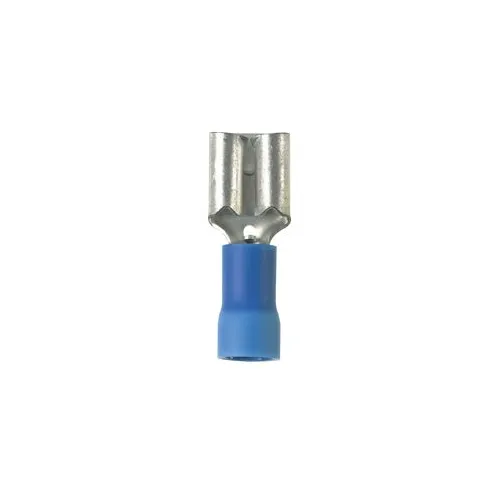

This female disconnect terminal is designed for use with wires in the 16 to 14 AWG range, indicating suitability for moderate gauge wires often used in power-handling applications. The "0.10" dimension specifies the size of the male tab that this female connector can attach to. The "Butted Seam" describes the crimping style, where the connector is crimped onto a wire with the metal ends meeting but not overlapping, ensuring a sturdy connection. The "Vinyl Barrel" points to the insulation material, which is vinyl in this case, providing durability and electrical insulation.
Also Known As:
• Spade terminals
• Female quick disconnects
• Slide-on terminals
• Spade connectors
Common Applications:
• Automotive electrical systems, like connections to switches, sensors, or audio systems
• Electrical control panels, for modular installation or maintenance purposes
• Home appliances, for internal wiring systems that require serviceability
• Power supplies, for making or breaking connections within electronic devices
Standards:
• UL (Underwriters Laboratories) standards, ensuring electrical safety and reliability
• CSA (Canadian Standards Association) standards, for acceptance in Canadian markets
• RoHS compliance, ensuring the restriction of certain hazardous substances in electrical and electronic equipment
Construction:
• The terminals feature a metallic crimp barrel designed to be crimped onto a wire for a secure connection.
• The vinyl insulation provides a cover for the crimp area to protect against shorts and provide a measure of user safety.
• The butted seam construction facilitates a strong, low-profile crimp that doesn't add bulk to the connection.
Features:
• The female disconnect is designed for easy installation and removal from a male tab.
• Sold in packs of 100, these connectors are intended for professional use where numerous connections are common.
• Color coding (indicated by "C" in the part number) helps to quickly identify the size and wire gauge compatibility.
• Vinyl insulation offers good insulation properties and resists moisture and other environmental factors.
• They are typically used with standardized crimping tools for consistent and reliable crimping.
Specification:
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size | #14 AWG |
| Maximum Wire Size | #14 AWG |
| Minimum Wire Size | #16 AWG |
| Minimum Copper Conductor Size | #16 AWG |
| Wire Strip Length | 1932-09-01 In. |
| Tab Size | 0.187 x 0.020 In. |
| Maximum Voltage | 600 V |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°C) | 105 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter | 0.76 In. |
| Overall Height | 0.1 In. |
| Overall Length | 0.79 In. |
| Overall Thickness | 0.16 In. |
| Overall Width | 0.23 In. |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| Maximum Voltage | 0.6 kV |
| Part No | DV14-188B-C |
