This is an upgrade for the nonlighted headlight switch found on 2022 Pioneer 1000s and 1000-6 machines.

Some 2022 and 2023 Pioneer 1000 models come with a headlight switch that is not lighted, making it impossible to find in the dark. Here, we provide a solution by providing a rewired switch that will plug into the 4-pin connector on these units.

It is plug-n-play, but you must provide a common ground for one wire to function.

Kit Includes:

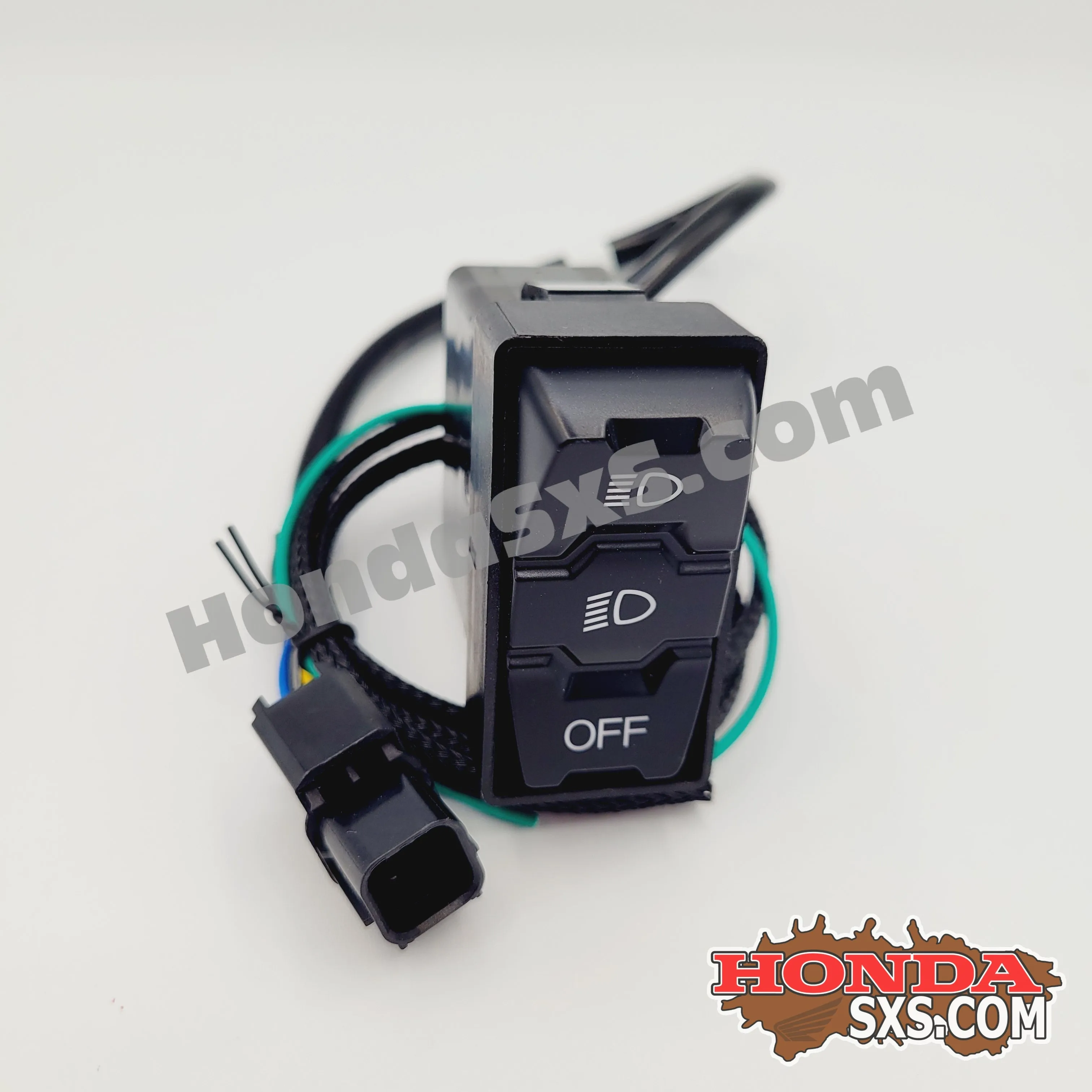

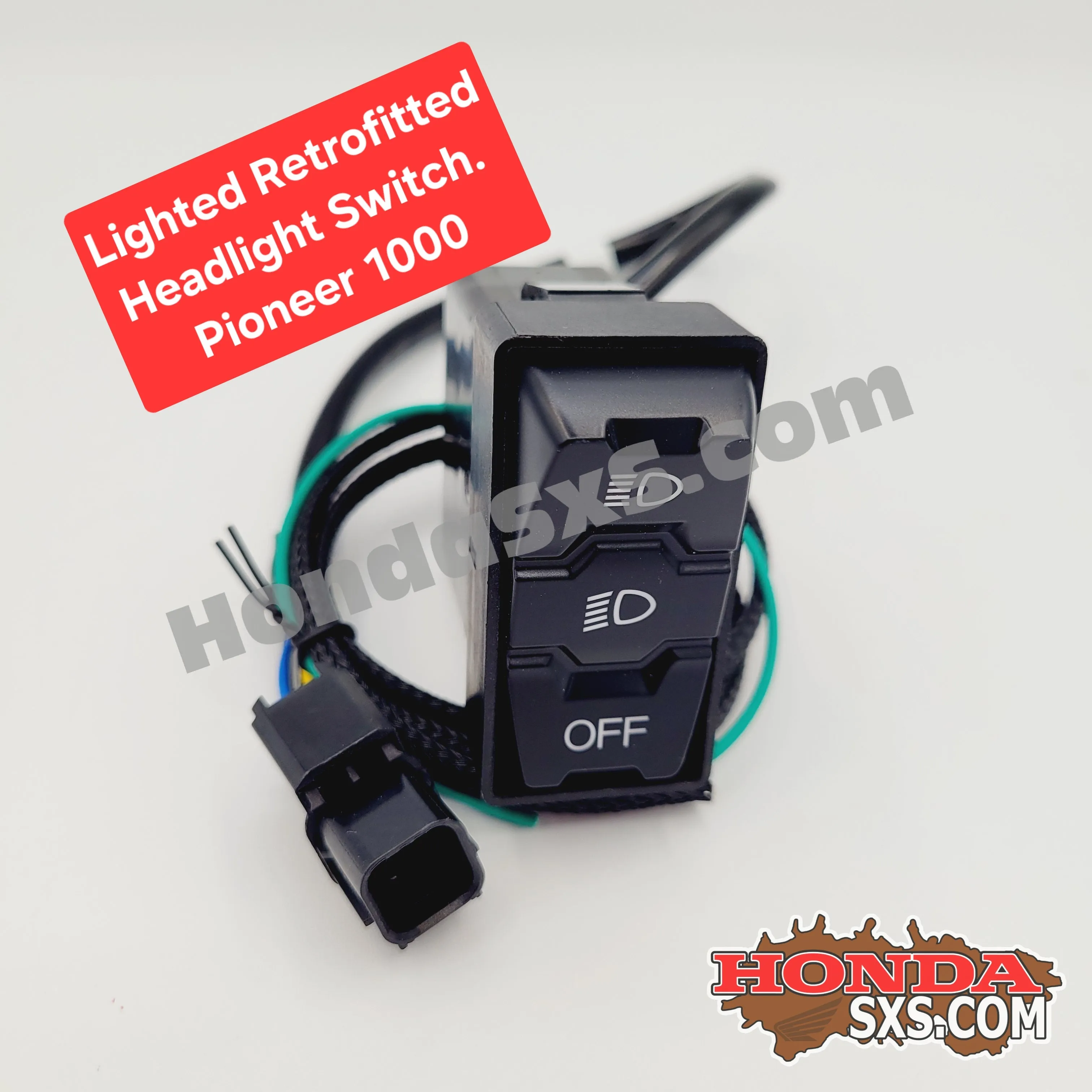

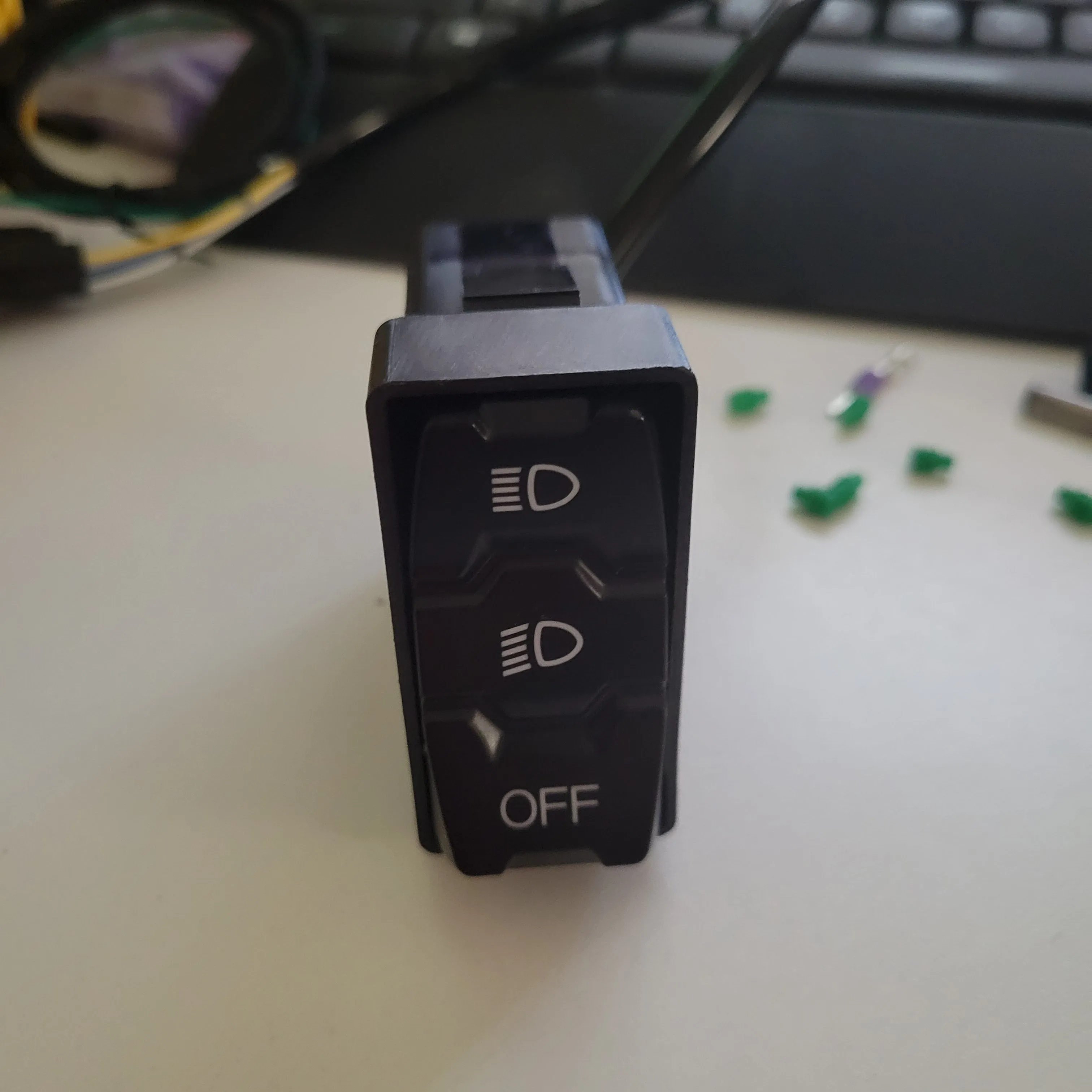

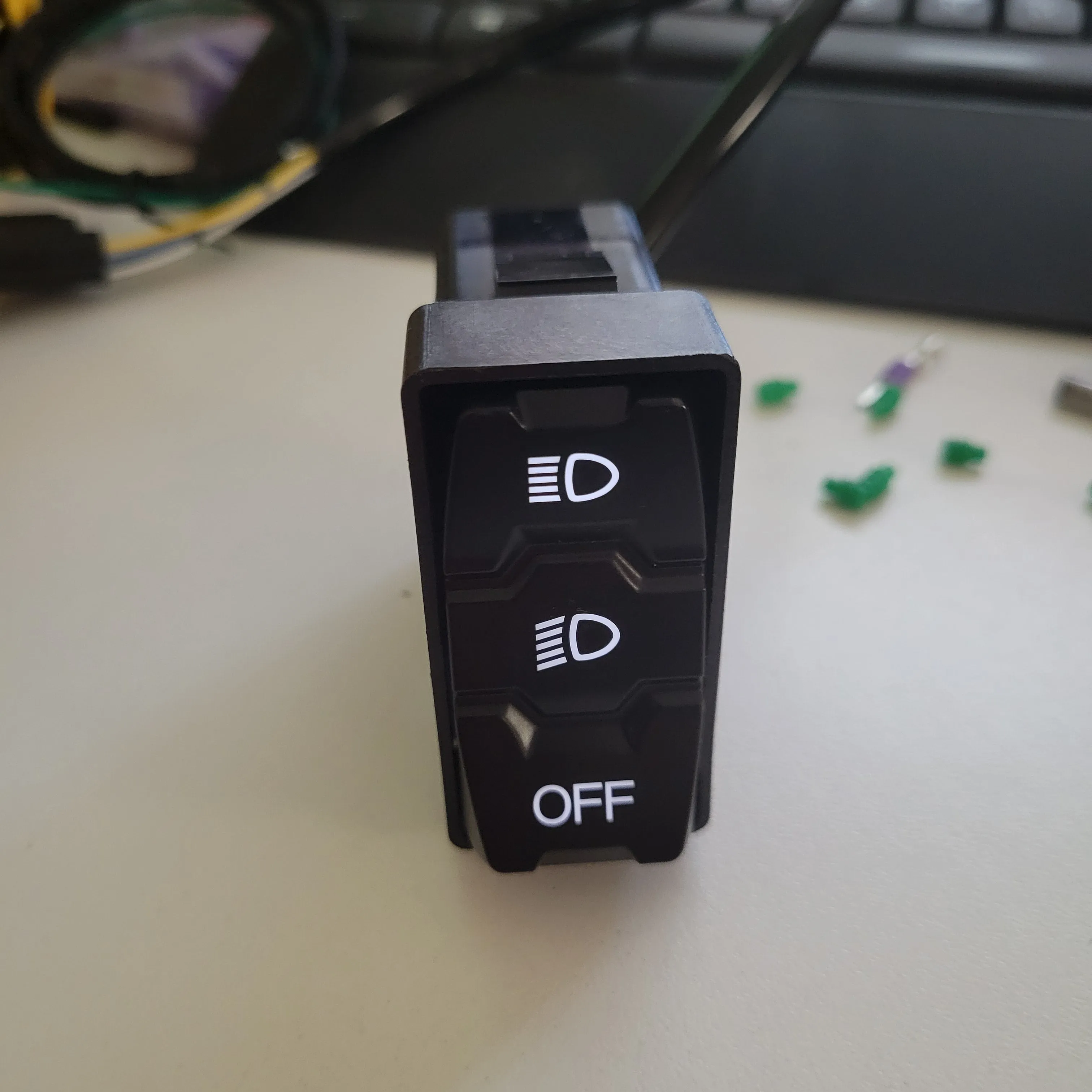

- one re-wired lighted rocker switch (4-pin connector).

Fits:

• Pioneer 1000-3 Base model
• Pioneer 1000-5 Base model
• Pioneer 1000-3 Deluxe
• Pioneer 1000-5 Deluxe
• Pioneer 1000-6 Crew.

Instructions:
- Disconnect old switch,
- Plug in retrofitted switch.
- Green wire needs to be grounded.

Getting the switch out is a task. Some reported being able to work it out top and bottom with a skinny screwdriver or metal shim. Others say it requires the removal of the dash panel, which is a J.O.B.
We currently do not have or provide any instructions for this task.
